Advantages :

1. Heavy-duty structure, faster cutting speed and high stability.
2. Precise servo transmission system combined with high-precision rack and reducer, ensures high cutting accuracy.
3. The safety protection device strictly complies with International laser safety standards, makes it safe operation and worry-free
4. Standard configuration of high-end laser source, cutting head and cutting system to achieve intelligent piercing : Automatic re-cut, Slag-free-cutting, Anti-collision, Auto-air-pressure-monitor, Auto- nozzle-cooling, Full process monitoring, etc.

Technical Parameters

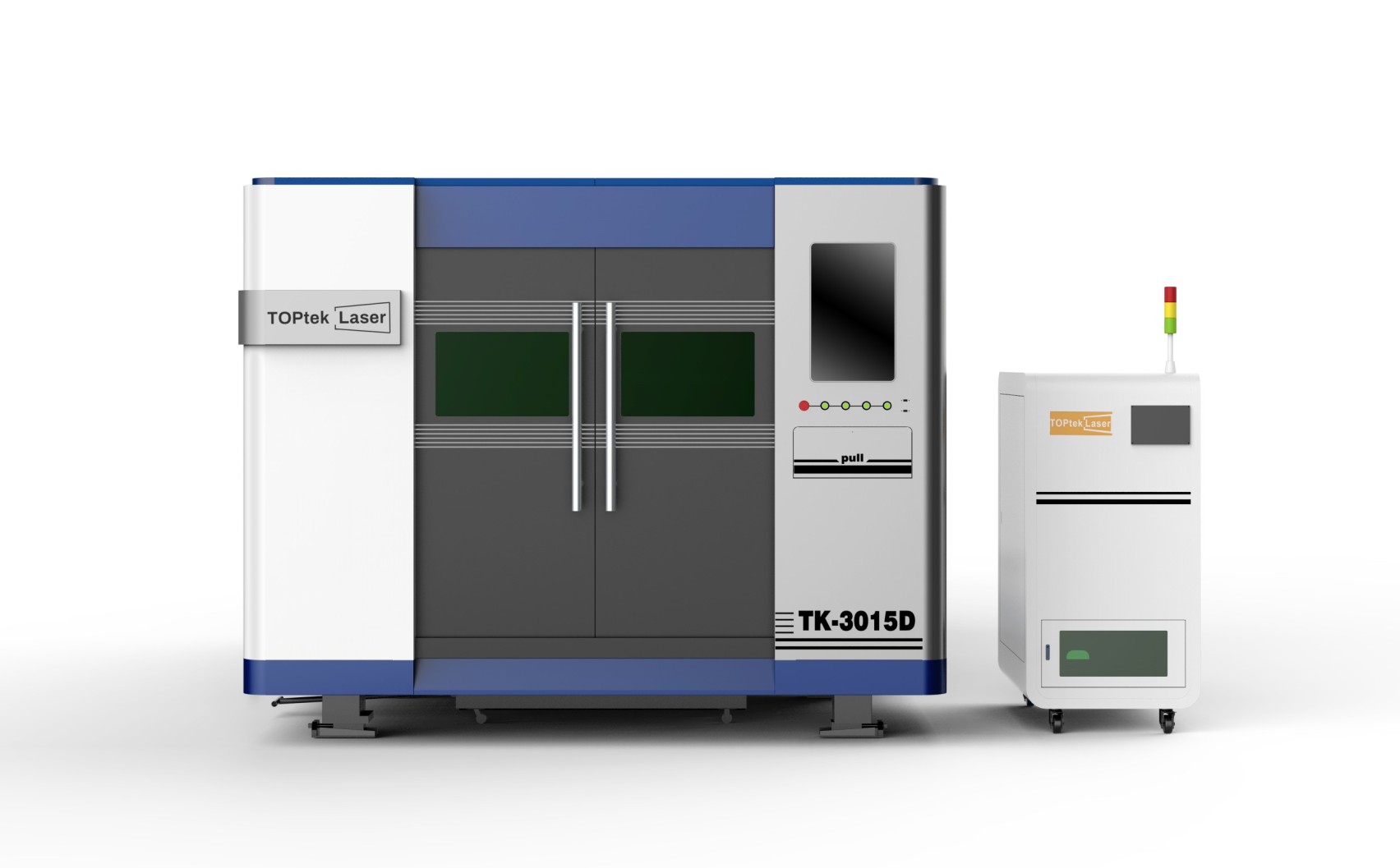

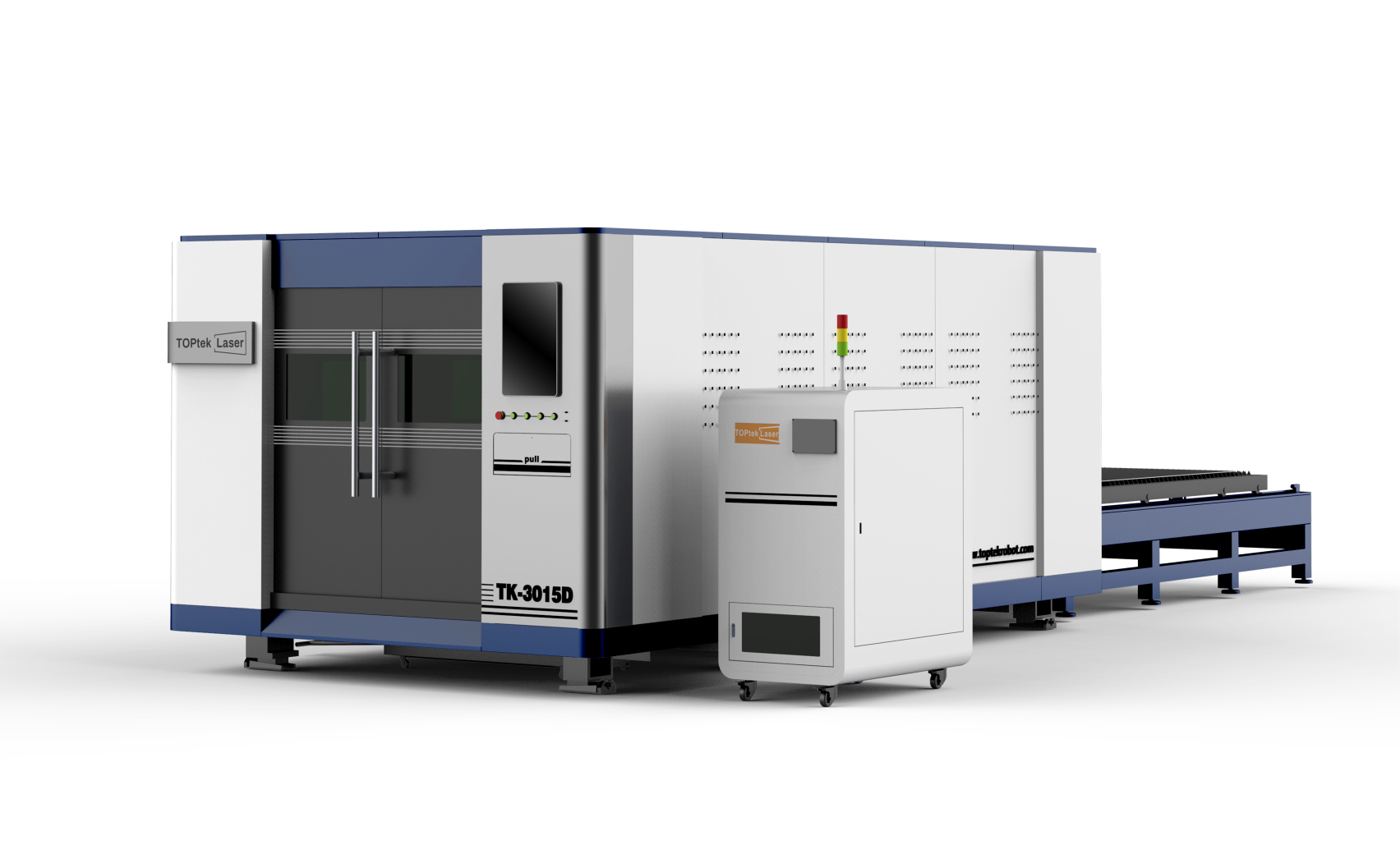

Model TK-3015
Working area 3000mm*1500mm
X-axis stroke 3050mm
Y-axis stroke 1520mm
X\Y Max. travelling speed 160 m/min
X\Y Max.cutting speed 60-120 m/min
Linear rail diameter 30/35 mm
Helical rack diameter 30/35 mm
Acceleration 1.5-1.8 G
Positioning accuracy 0.05mm/m
Repeated positioning accuracy 0.03mm
Transmission type  Dual servo drive
Lubrication type Auto oiling
Max.Table load weight 2000 kg
